Description
Product overview

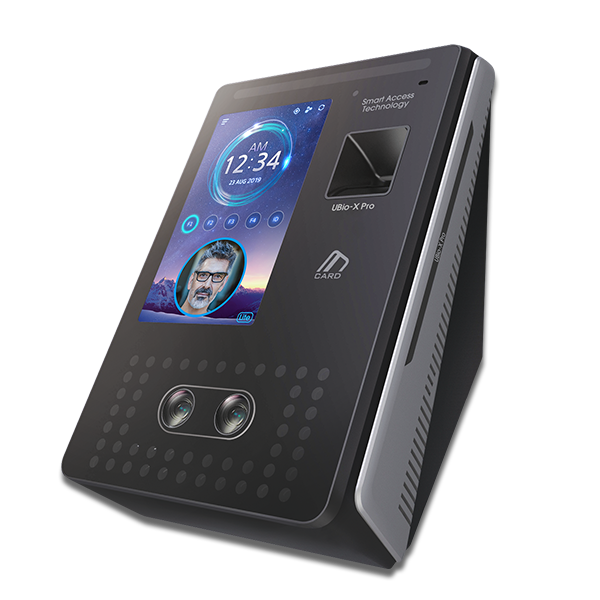

The UBio-X Pro is UNION biometrics’ advanced face and fingerprint recognition terminal. It pairs the manufacturer’s latest face authentication algorithm with a high-definition dual camera to recognise faces in varied lighting, matching 100,000 face templates within one second on a 1.0 GHz quad-core processor. Fingerprints are read on a 500 dpi sensor with a 15.5 × 19 mm platen, and the manufacturer quotes a false rejection rate of 0.1% and a false acceptance rate of 0.0001%.
It is built for access control and time attendance at busy entrances, and UNION biometrics also lists large integrated security centres among its applications. It is rated for 30,000 lux of ambient light, which suits brightly lit lobbies. Capacity covers 500,000 card users; 500,000 fingerprint users for 1:1 verification or 100,000 for 1:N identification; 200,000 face users for 1:1 or 30,000 for 1:N, based on five face enrolments per user; plus 10,000,000 event logs and 20,000 image logs.
Users can authenticate by face, fingerprint or a 125 kHz EM or 13.56 MHz smart card, on a 5-inch colour touchscreen with soft function keys and a clean graphical interface. The terminal is managed from UBio Alpeta server software over TCP/IP, with RS-232, RS-485, Wiegand in and out and an SD card slot on board, and Wi-Fi as an option. The same model is also listed on etopme.ae.
The UBio-X Pro has no dust or water resistance rating, so install it indoors; for exposed doors, the UBio-X Tag is rated IP65/IP67 and IK08. Face-only identification (1:N) tops out at 30,000 users, so larger workforces should verify face against a card for 1:1 matching, which supports 200,000 face users. At 89.7 mm deep it is a substantial unit: if fingerprint and card are enough, the UBio-X Slim is 23.5 mm deep at the top, and the UBio-X Pro Lite offers face, fingerprint and card with half the Pro’s 1:1 face capacity. For hands-free recognition at a distance, the UBio-X Face Premium recognises faces from 0.5 to 4 m.
UBio-X Pro specifications
| Authentication | Face, fingerprint and card |
|---|---|
| Face recognition | High-definition dual camera; 100,000 face templates matched within 1 second |
| Face users (1:1 / 1:N) | 200,000 / 30,000 (five face enrolments per user) |
| Face templates (1:1 / 1:N) | 1,000,000 / 150,000 – up to 10 per user |
| Fingerprint sensor | 500 dpi, 15.5 × 19 mm platen |
| Fingerprint users (1:1 / 1:N) | 500,000 / 100,000 (one enrolled finger per user) |
| Fingerprint templates (1:1 / 1:N) | 1,000,000 / 200,000 – 2 per finger, up to 10 fingers per user |
| FRR / FAR | 0.1% / 0.0001% |
| Card users | 500,000 |
| Card reader | 125 kHz EM or 13.56 MHz smart card |
| Processor | 1.0 GHz quad-core |
| Event logs | 10,000,000 |
| Image logs | 20,000 |
| Display and keypad | 5-inch colour touchscreen, backlit, with soft function keys |
| Interfaces | TCP/IP, RS-232, RS-485, Wiegand in and out, SD card; Wi-Fi optional |
| Server software | UBio Alpeta |
| Operating illuminance | 30,000 lux |
| Dimensions (W × H × D) | 149.7 × 208 × 89.7 mm |
| Operating temperature | −20 to 60 °C |
| Dust and water resistance | Not rated |
Manufacturer specifications, UNION Biometrics.
Compare the UBio-X range
| Model | UBio-X Slim | UBio-X Pro | UBio-X Pro Lite | UBio-X Iris | UBio-X Tag |
|---|---|---|---|---|---|
| Authentication | Fingerprint, card, mobile | Face, fingerprint, card | Face, fingerprint, card | Iris, fingerprint, card | Card, mobile |
| Card users | 500,000 | 500,000 | 500,000 | 200,000 | 400,000 |
| Screen / keypad | 5-inch touchscreen | 5-inch touchscreen | 5-inch touchscreen | 5-inch touchscreen | Physical keypad |
| Size W × H × D (mm) | 80 × 195.6 × 23.5 | 149.7 × 208 × 89.7 | 149.7 × 208 × 89.7 | 160.6 × 214 × 45.4 | 45 × 157 × 27 |
| Dust and water rating | Not rated | Not rated | Not rated | Not rated | IP65 / IP67, IK08 |
| Operating temperature | −20 to 60 °C | −20 to 60 °C | −20 to 55 °C | −20 to 55 °C | −20 to 60 °C |
| Best suited to | Indoor doors where a slim profile suits the interior | Indoor sites that want face recognition alongside fingerprint and card | Face, fingerprint and card where half the Pro’s face capacity is enough | High-security indoor areas that need iris recognition | Card and phone entry at exposed or outdoor doors |
Frequently asked questions
Can the UBio-X Pro be installed outdoors?
No. UNION biometrics lists no dust or water resistance rating for the UBio-X Pro, so it belongs indoors. It is rated for 30,000 lux of ambient light, which suits bright lobbies, but exposed doors need the IP65/IP67-rated UBio-X Tag.
How many users can the UBio-X Pro recognise by face?
Up to 30,000 users by face alone (1:N), or 200,000 when the face is verified against a card (1:1), based on five face enrolments per user. It also holds 500,000 card users and 10,000,000 event logs.
How fast is the UBio-X Pro at face recognition?
UNION biometrics states the UBio-X Pro matches 100,000 face templates within one second, using its latest face algorithm and a high-definition dual camera, so queues keep moving at busy entrances.
Should I choose the UBio-X Pro or the UBio-X Pro Lite?
Choose the UBio-X Pro for the larger face database: 200,000 face users for 1:1 verification, against 100,000 on the Pro Lite. Both read face, fingerprint and cards on a 5-inch touchscreen, and the Pro is rated to 60 °C rather than 55 °C.
Which cards work with the UBio-X Pro?
It reads 125 kHz EM or 13.56 MHz smart cards alongside face and fingerprint. Tell us which card type your site already uses when you request a quote, so the terminal is supplied with the matching card reader.
What is the UBio-X Pro price in the UAE?
Pricing is by quotation, because the total depends on the card reader, software and number of doors. Contact the eTOP team in Dubai or Abu Dhabi with your requirements for a UBio-X Pro quote.
