Description
The UBio-X Pro Lite is a multi-biometric access control and time attendance terminal that combines face recognition and fingerprint authentication in a single, ergonomically designed device. Built for organisations that need reliable performance without the footprint of an enterprise-level system, the UBio-X Pro Lite delivers the core of what demanding access environments require — speed, accuracy, and zero compromise on security.
Powered by a 1.0 GHz Quad-Core processor and running on an Android-based interface, the terminal handles face matching at up to 35,000 templates per second and stores up to 500,000 user profiles. Whether you are managing a mid-size office, a manufacturing floor, or a multi-building campus across the UAE, the UBio-X Pro Lite is engineered to keep up with the pace.
Union Biometrics supplies and supports the UBio-X Pro Lite across the UAE and the wider Middle East, with local expertise to ensure your installation, configuration, and ongoing management is handled right.
High-Performance Face Recognition in Any Light
The UBio-X Pro Lite operates at an illuminance of up to 30,000 Lux — six times higher than the industry standard. This means consistent, reliable face authentication whether the terminal is placed in a bright outdoor-facing lobby, a dimly lit corridor, or under direct sunlight at a factory entrance. Recognition does not slow down or fail when lighting conditions change.
Prime Face & Fingerprint Recognition Terminal
UBio-X Pro Lite is a face authentication system.
It is packed with functions for powerful performance and the largest facial recognition database.
The World’s Best Illuminance Performance
- The latest face authentication algorithm of UBio-X Pro Lite Face recognition system is able to recognize people under various light environments.
- Operating illuminance of up to 30,000Lux.
- It supports a High Quality Camera for the fastest match and highest recognition accuracy.

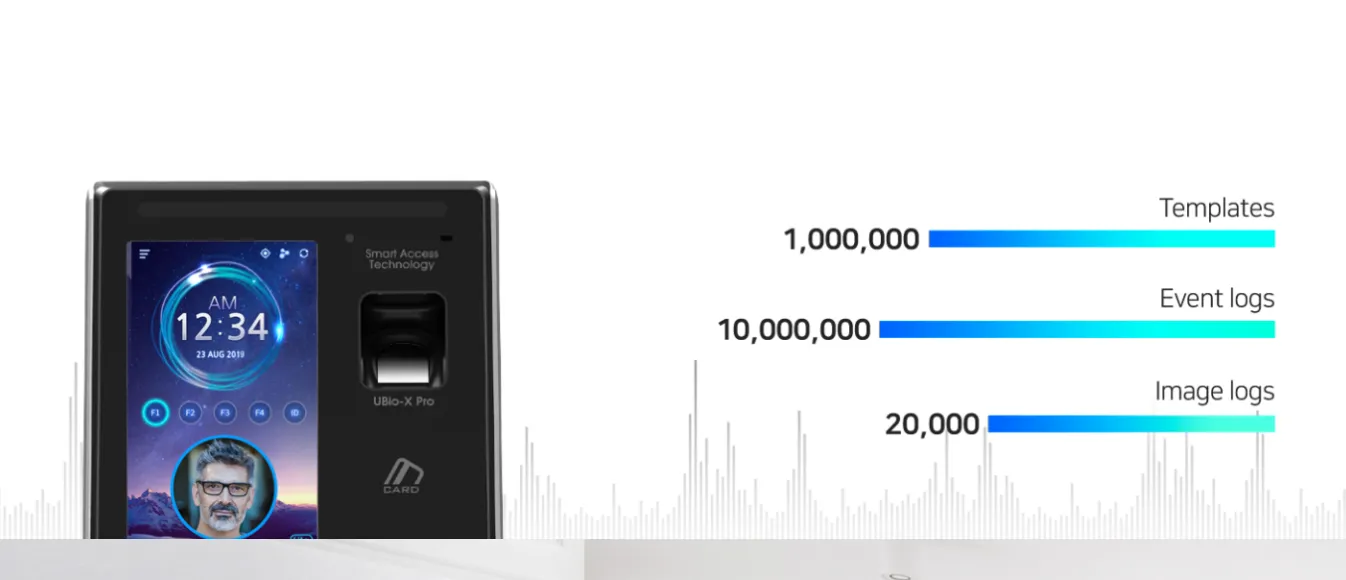

Massive Memory
- UBio-X Pro Lite has a Powerful 1.0 GHz Quad Core Processor.
- The Large Memory enables 500,000 User ID’s, 1,000,000 Fingerprint / Face Templates, 10,000,000 Event Logs and 20,000 Image Logs per transaction.
Various Usability
UBio-X Pro Lite 5 inch LCD touch screen. A clear, wide and easy to used graphical interface for user.
The device features 5” LCD touch screen which creates very easy graphical interface for end user.
Itsupports most types of RFID card standards with a single device including 125kHz RF, 13.56 SC, HID Prox and HID iClass.
Various Applications
Usability in various Environments:
- Food and materials manufacturing factory
- Bank
- Construction site
- R&D Center
- Office

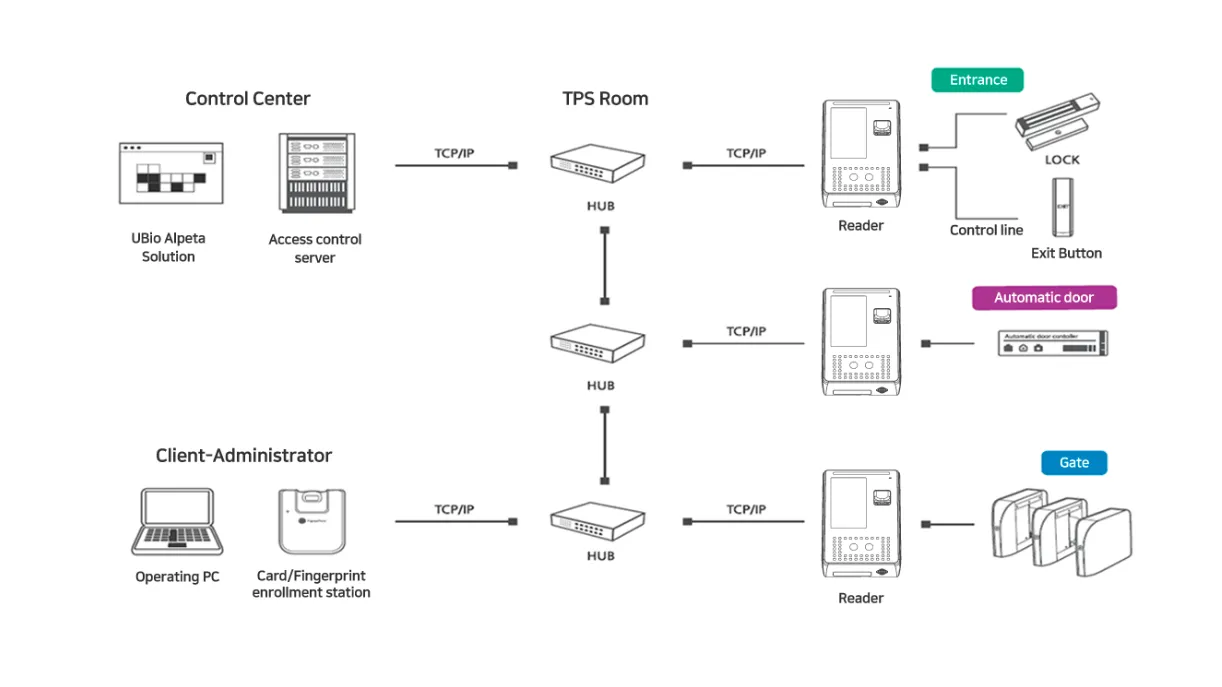

UBio-X pro Lite System Configuration
Specifications
Manufacturer specifications, UNION Biometrics.
| Model | UBio-X Pro Lite |
| Authentication Method | Face/Fingerprint/Card |
| Dust/ Water Resistance | X |
| Memory — Max Users — Card — (1:1) / (1:N) | 500,000 |
| Fingerprint (Base on one finger enrollment per user) — 1:1 | 500,000 |
| 1:N | 100,000 |
| Face (Base on five Face enrollment per user) — 1:1 | 100,000 |
| 1:N | 7,000 |
| Templates — Fingerprint — 1:1 | 1,000,000 |
| 1:N | 200,000 |
| MAX Templates per Finger | 2 |
| MAX Finger per User | 10 |
| Face — 1:1 | 500,000 |
| 1:N | 35,000 |
| MAX Templates per User | 10 |
| Logs | 10,000,000 |
| images | 20,000 |
| communication — with server | TCP/IP |
| other | SD Card |
| Wireless LAN(Wi-Fi) | Optional |
| Wiegand OUT | O |
| RS232 | O |
| RS485 | O |
| Wiegand IN | O |
| Display — LCD | 5”Color Touch |
| Backlight | O |
| Card — 125khz-EM | O |
| HID Prox | O |
| HID iclass | O |
| 13.56MHz Smart Card | O |
| Embedded Camera | Dual |
| Keypad | Touch Screen |
| Function keys | SOFT |
| Door Phone | X |
| FP Sensor (Platen Area) | 15.5 X 19 mm |
| Resolution | 500dpi |
| Dimension(W) X (H) X (D) mm | 149.7 x 208 x 89.7mm |
| FRR /FAR | 0.1% / 0.0001% |
| Operating Illuminance (lux) | 30,000 |
| Operating Temperature | -20 ~ 55℃ |
| Opertating Software (Server solution) | UBio Alpeta |
