Description
Product overview

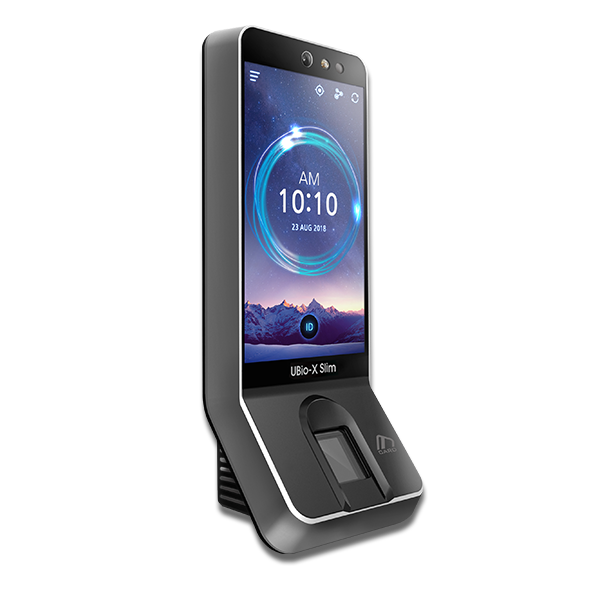

The UBio-X Slim is UNION biometrics’ premium fingerprint and card recognition terminal. It runs on a quad-core 1.4 GHz processor with 2 GB of RAM and 8 GB of flash memory, and extracts a fingerprint image in less than a second from a 500 dpi sensor with a 16.4 × 19.4 mm platen. UNION biometrics’ Live Fingerprint Detection (LFD) checks that a real finger is on the sensor, and the manufacturer quotes a false rejection rate of 0.1% and a false acceptance rate of 0.0001%.
It suits indoor entrances where the terminal is on show: reception areas, office floors, bank branches and hotels. The face measures 80 × 195.6 mm and is only 23.5 mm deep at the top, behind a 5-inch colour touchscreen with reinforced glass. Capacity runs from a single office to a large estate: 500,000 card users, 100,000 fingerprint users on a one-finger-per-user basis, 10,000,000 event logs and 50,000 image logs from the built-in camera.
Users can present a fingerprint, a 125 kHz EM or 13.56 MHz smart card, or a smartphone. Mobile access works with iPhones on iOS 10.0 or later with BLE 4.2, and Android phones on 6.0 or later with NFC, at under 10 cm, secured with AES-256 encryption and Azure Key Vault on an on-premise or cloud server. The terminal connects to UBio Alpeta server software over TCP/IP, with USB, RS-232, RS-485 and Wiegand in and out on board, and Wi-Fi as an option.
The UBio-X Slim has no dust or water resistance rating, so install it indoors; for gates and exposed doors, the UBio-X Tag is rated IP65/IP67 and IK08. It does not recognise faces: choose the UBio-X Pro or UBio-X Pro Lite for face, fingerprint and card on one unit, or the UBio-X Iris for iris recognition in high-security areas. The slim profile applies to the top of the unit; the lower section is 54.67 mm deep.
UBio-X Slim specifications
| Authentication | Fingerprint, card and mobile card (NFC / BLE) |
|---|---|
| Fingerprint sensor | 500 dpi, 16.4 × 19.4 mm platen, Live Fingerprint Detection (LFD) |
| FRR / FAR | 0.1% / 0.0001% |
| Processor and memory | Quad-core 1.4 GHz CPU, 2 GB RAM, 8 GB flash |
| Card users | 500,000 |
| Fingerprint users (1:1 / 1:N) | 100,000 / 100,000 (one enrolled finger per user) |
| Fingerprint templates (1:1 / 1:N) | 200,000 / 200,000 – 2 templates per finger, up to 10 fingers per user |
| Event logs | 10,000,000 |
| Image logs | 50,000 |
| Display | 5-inch colour TFT touchscreen, backlit, reinforced glass |
| Keypad | Touchscreen with soft function keys |
| Embedded camera | Yes |
| Card reader | 125 kHz EM or 13.56 MHz smart card |
| Mobile access | NFC / BLE: iPhone on iOS 10.0 or later with BLE 4.2 or later; Android 6.0 or later with NFC; range under 10 cm (varies by phone) |
| Mobile access security | AES-256 with Azure Key Vault; on-premise or cloud server |
| Interfaces | TCP/IP, USB, RS-232, RS-485, Wiegand in and out; Wi-Fi optional |
| Server software | UBio Alpeta |
| Dimensions (W × H × D) | 80 × 195.6 × 23.5 mm at the top; 54.67 mm deep at the lower section |
| Operating temperature | −20 to 60 °C |
| Dust and water resistance | Not rated |
Manufacturer specifications, UNION Biometrics.

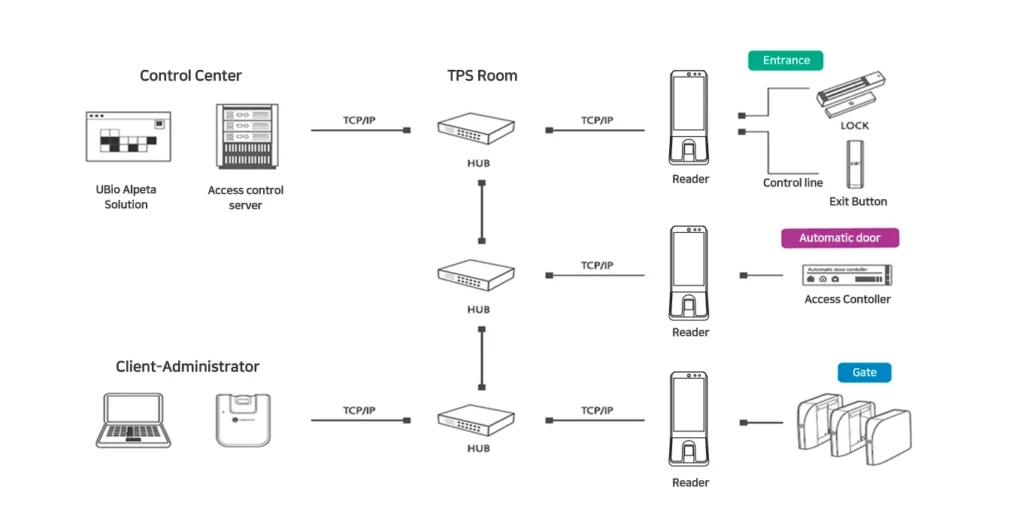

System configuration
Compare the UBio-X range
| Model | UBio-X Slim | UBio-X Pro | UBio-X Pro Lite | UBio-X Iris | UBio-X Tag |
|---|---|---|---|---|---|
| Authentication | Fingerprint, card, mobile | Face, fingerprint, card | Face, fingerprint, card | Iris, fingerprint, card | Card, mobile |
| Card users | 500,000 | 500,000 | 500,000 | 200,000 | 400,000 |
| Screen / keypad | 5-inch touchscreen | 5-inch touchscreen | 5-inch touchscreen | 5-inch touchscreen | Physical keypad |
| Size W × H × D (mm) | 80 × 195.6 × 23.5 | 149.7 × 208 × 89.7 | 149.7 × 208 × 89.7 | 160.6 × 214 × 45.4 | 45 × 157 × 27 |
| Dust and water rating | Not rated | Not rated | Not rated | Not rated | IP65 / IP67, IK08 |
| Operating temperature | −20 to 60 °C | −20 to 60 °C | −20 to 55 °C | −20 to 55 °C | −20 to 60 °C |
| Best suited to | Indoor doors where a slim profile suits the interior | Indoor sites that want face recognition alongside fingerprint and card | Face, fingerprint and card where half the Pro’s face capacity is enough | High-security indoor areas that need iris recognition | Card and phone entry at exposed or outdoor doors |
Frequently asked questions
Can the UBio-X Slim be installed outdoors?
No. UNION biometrics lists no dust or water resistance rating for the UBio-X Slim, so it belongs indoors. For gates, car parks and exposed doors, the UBio-X Tag card reader is rated IP65/IP67 and IK08 against vandalism.
How many users can the UBio-X Slim store?
The UBio-X Slim stores up to 500,000 card users and 100,000 fingerprint users, counted at one enrolled finger each. It also keeps 10,000,000 event logs and 50,000 image logs on the terminal.
Which cards and phones work with the UBio-X Slim?
It reads 125 kHz EM or 13.56 MHz smart cards and accepts mobile access cards on smartphones: iPhones on iOS 10.0 or later with BLE 4.2, and Android 6.0 or later with NFC, held within 10 cm of the terminal.
Does the UBio-X Slim detect fake fingerprints?
Yes. It uses UNION biometrics’ Live Fingerprint Detection (LFD) to check that a real finger is on the 500 dpi sensor, and the manufacturer quotes a false acceptance rate of 0.0001% with a false rejection rate of 0.1%.
Should I choose the UBio-X Slim or the UBio-X Pro?
Choose the UBio-X Pro if you want face recognition as well as fingerprint and card. Choose the UBio-X Slim for fingerprint and card in a far thinner body: 23.5 mm deep at the top, against 89.7 mm for the Pro.
What is the UBio-X Slim price in the UAE?
Pricing is by quotation, because the total depends on the card reader, software and number of doors. Contact the eTOP team in Dubai or Abu Dhabi with your requirements for a UBio-X Slim quote.
