Description
Slim Design, Anywhere Installation
The UBio-X Tag was designed with installation flexibility in mind. Its ultra-thin profile makes it ideal for environments where standard terminals simply won’t fit — glass doors, thin-framed entry points, narrow doorways, apartment complex entrances, and parking gates. No structural modifications are needed. Whether you’re securing a small office or a large multi-entry facility, the UBio-X Tag fits cleanly and looks professional in any environment.
Small but mighty RFID reader access control terminals

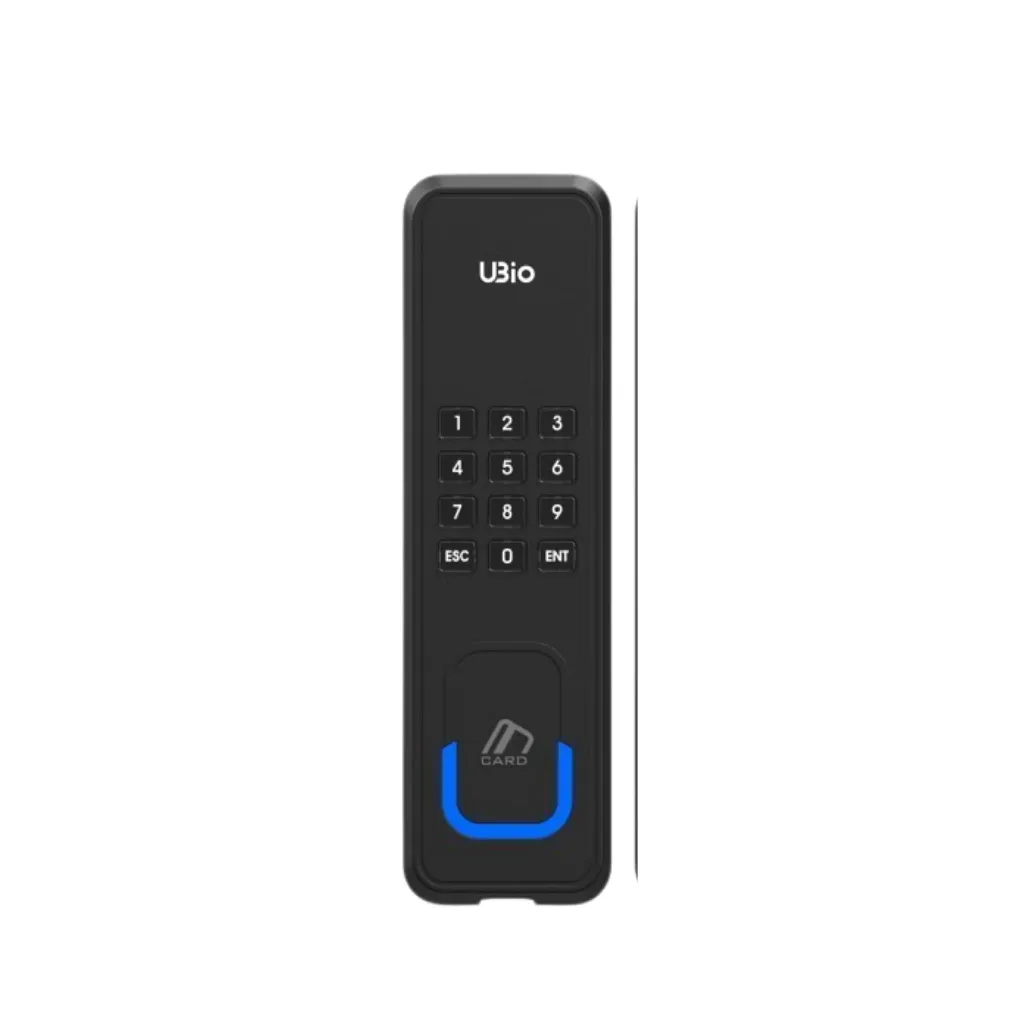

The UBio-X Tag is a sleek, compact RFID access control terminal built for organizations that need reliable, contactless authentication without the complexity of a full biometric device. With its ultra-slim design, multi-card support, and mobile authentication capability, the UBio-X Tag is the smart choice for any space where clean, secure, and flexible access management is the priority.
Multiple card authentication
- Apply multiple RFID card technologies, including MIFARE, DESFire, HID, Suica, etc.
- Support for multiple card standards and mobile authentication (NFC/BLE) in one terminal.
- Flexibly extend to existing security systems as well as new security environments.
Card authentication
- RFID, MIFARE, DESFire, HID iClass, HID Prox, Suica, etc.
Mobile card authentication
- NFC, BLE
Stronger Security, More Scalability
Securely connect different controllers and devices with bi-directional encryption with the international standard OSDP V2,End-to-end encryption ensures full protection all the way from card to server.
OSDP V2 support
End-to-end security

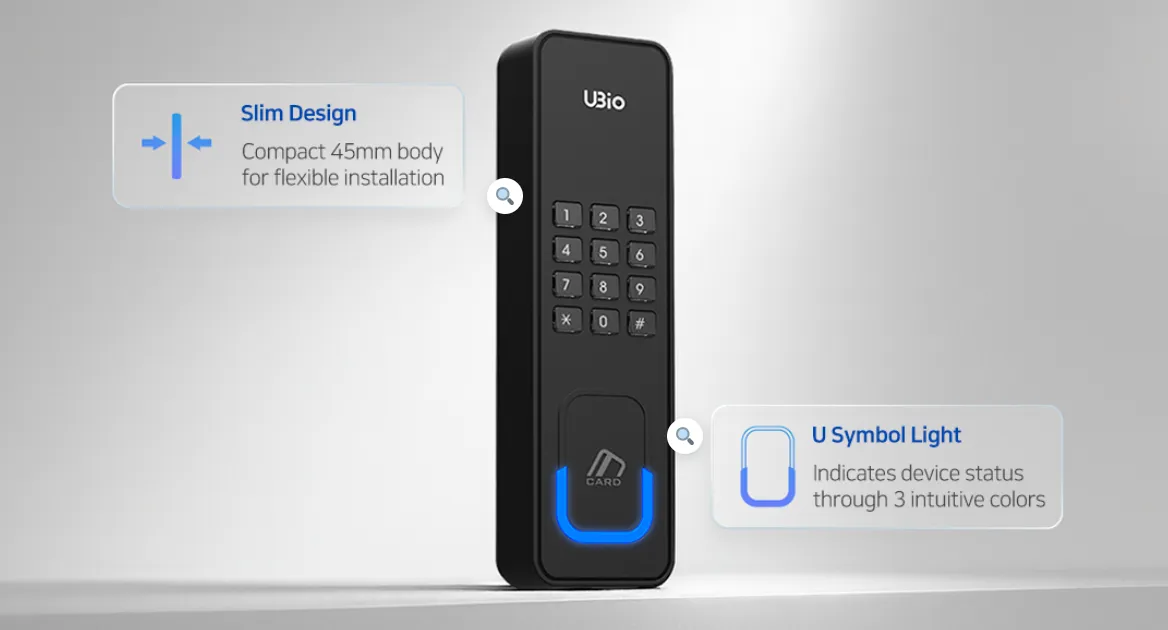

Slim and smart design
Simple, sleek design and user-centered design for ease of use,Slim design for thin door frames, narrow doorways, glass doors, etc.It can be installed in a variety of frame structures without restriction.
Ruggedized for any environment
Meeting international standard ratings, including IP67 water- and dust-resistance and IK08 shock rating, It works reliably in any harsh environment, from dusty, high-impact construction sites to the most extreme conditions.

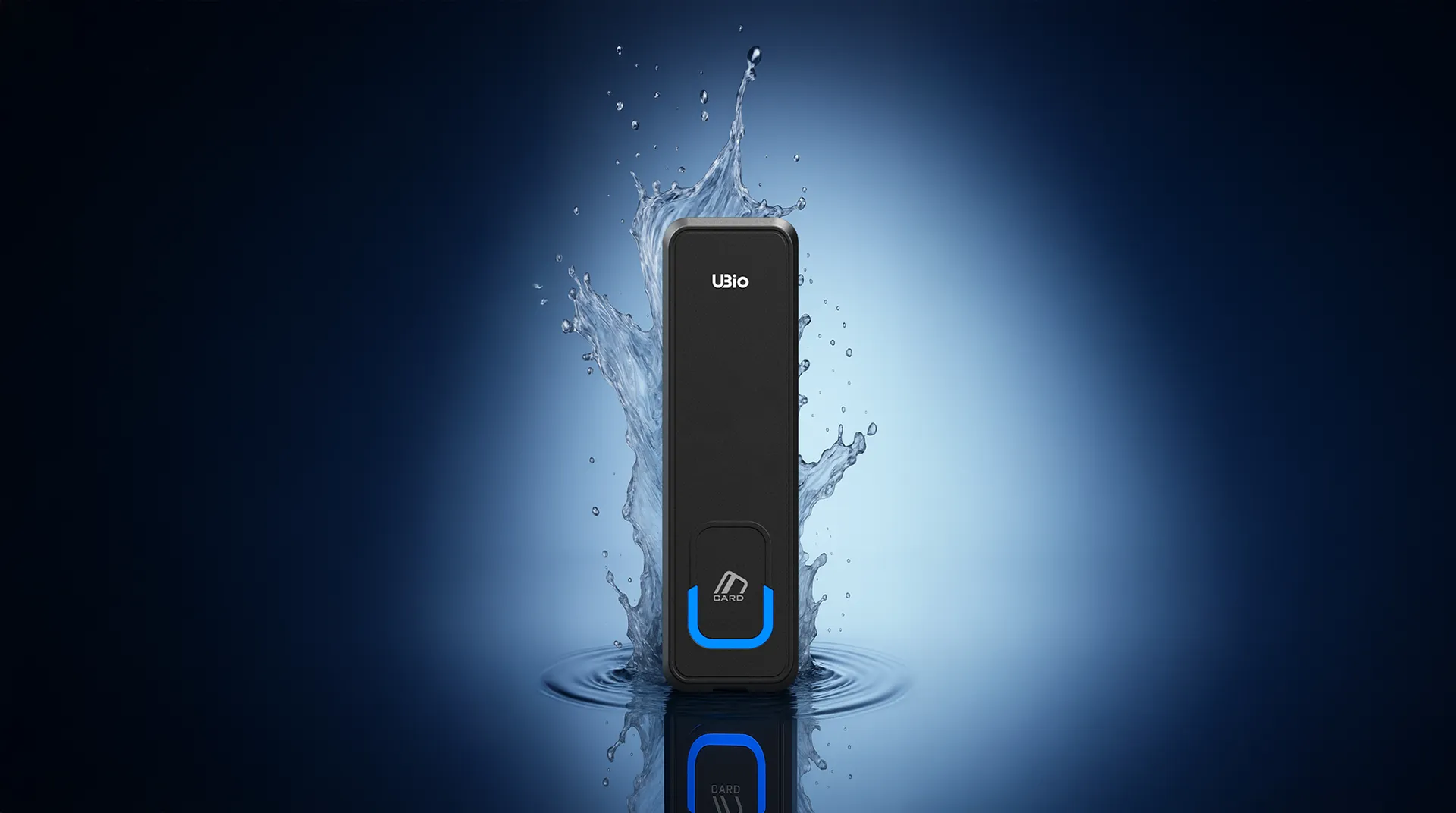

- IP67 Waterproof & Dustproof – Complete protection from rain and dust

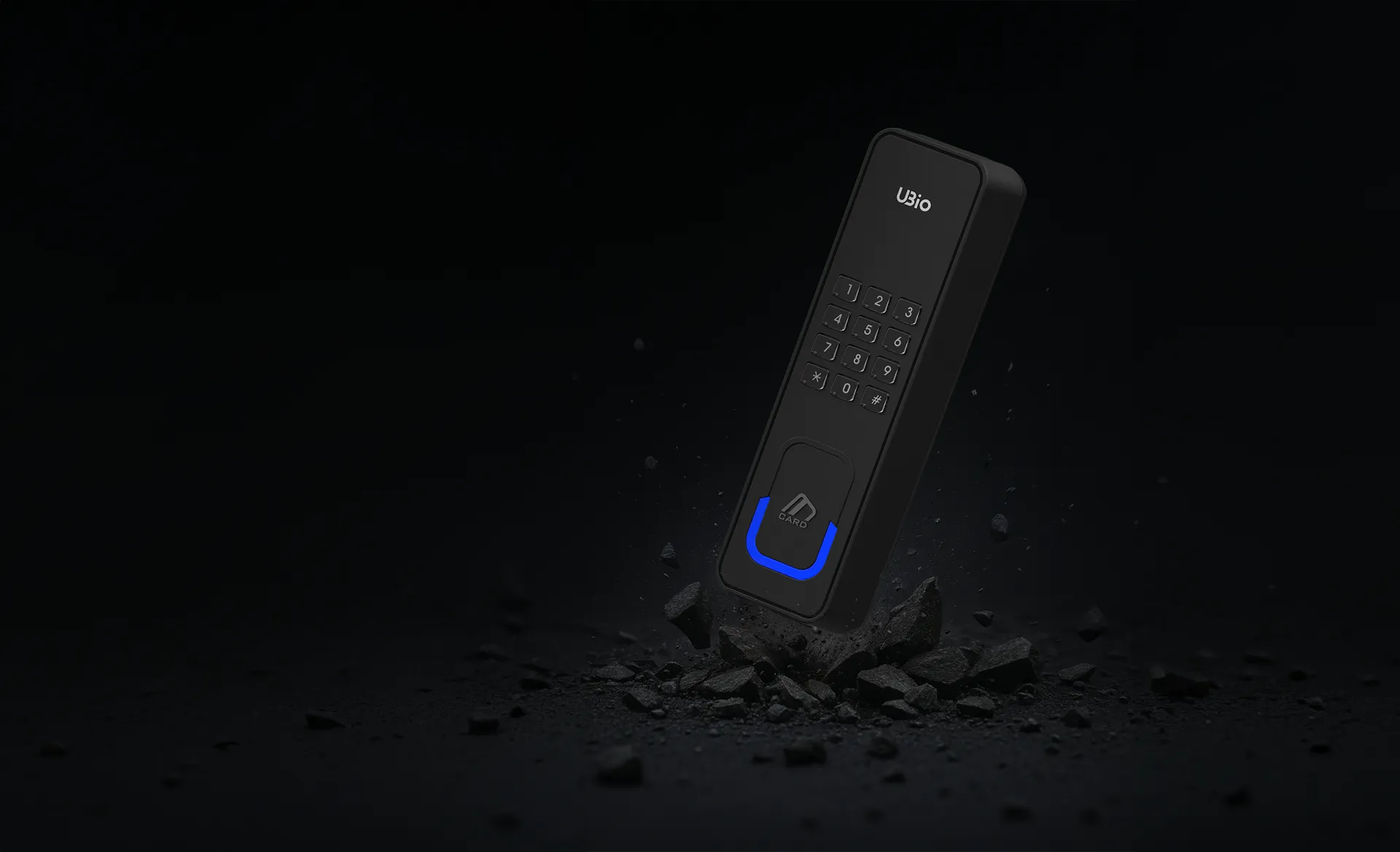

- IK08 Impact Resistance – Stable operation even under strong external impact
Applications:
High Security Area
– Security-critical facilities such as government buildings, labs, data centers, etc.
– Streamline critical facility security compliance and operational management
Compact Installation Area
– Space-constrained areas such as apartment complex entrance gates, parking lot entrances, etc.
– Easy to install in a variety of spaces without structural changes

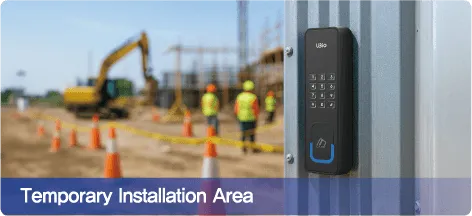

Temperory Installation Area
– Places that require short-term operations, such as construction sites, event venues, etc.
– Quick set-up and tear-down with a single PoE cable
Critical Access Area
– Areas where it’s difficult to install terminals, such as glass doors, thin-framed entry doors, etc.
– Eliminate security blind spots with a compact design that doesn’t restrict installation
Specifications
Manufacturer specifications, UNION Biometrics.
| Maximum number of users | 400,000 |
| Text logs | 1,000,000 |
| Card Module (SC/RF Dual) | 13.56MHz Smart Card Reader (ISO14443A/B, Mifare, Felica, ISO15693), SEOS (Optional), DesFire (EV1/EV2/EV3 Optional), SAM slot |
| 125kHz RF Card Reader (Module), EM, HID Prox (Optional) | |
| Mobile | NFC / BLE |
| Keypad | Physical Keypad |
| Waterproof/Dustproof | IP65 / IP67 |
| Vandalism prevention | IK08 |
| CPU | ARM Cortex-A7 Dual-core 1.2 GHz |
| Memory | 4GB eMMC + 256MB RAM |
| LED | Multicolor (tricolor) – White, Blue, Red |
| Operating temperature | -20℃ to +60 |
| Humidity | 0% to 95 |
| Weight | 200 grams (keypad 202 grams) |
| Size (W × H × D) | 45 × 157 × 27 mm |
| Temper | Support |
| Ethernet | 10/100 Mbps |
| RS-485 | 1ch (select master/slave) |
| PoE | Support |
| Relay | 2ch |
| In | 2ch (1ch Optional) |
