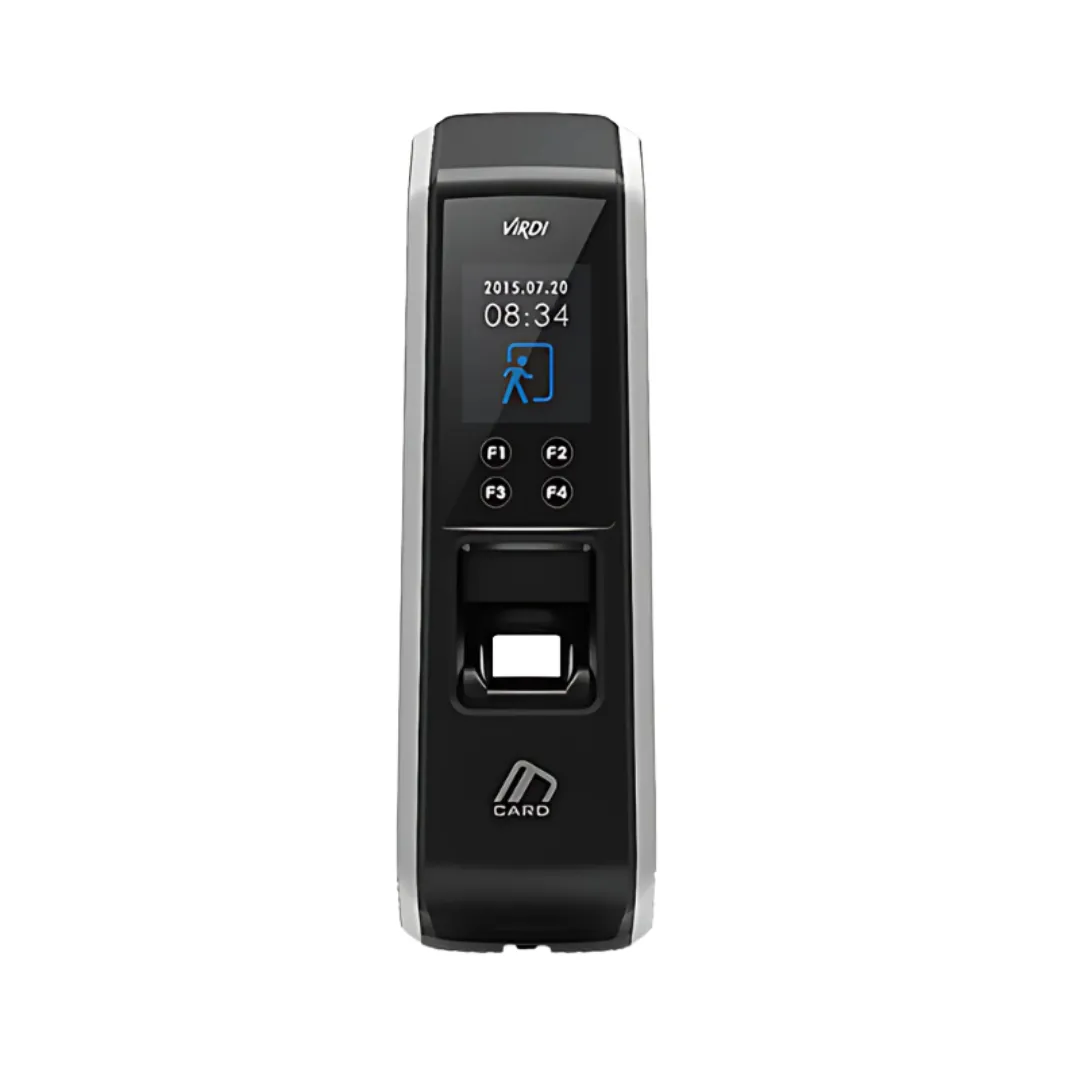

AC-2200 is a Premium outdoor fingerprint recognition terminal with IP65 Dust & Waterproof and supporting Bluetooth.
The AC-2200 Reader (Access Control – 2200) is a premium reader designed and engineered by Virdi to provide the ultimate solution for access control to today’s high-end facilities and environments. The high-end 7.5 cm (1.77″) Color high quality LCD display with finger creation facility along with High Definition quality embedded camera in the reader stores finger print data of up to 10,000 users along with 100,000 event logs in its 32MB memory.
The weatherproof IP65 rated casing of AC-2200 can be surface mounted outdoors, which means it can withstand harsh weather and dusty environments, to operate without any problem. It is also fully compatible with control systems for access control, thanks to its OSDP (Open Supervised Device Protocol) compliance. This makes the outdoor fingerprint and card reader ideal for facilities where people holding a fingerprint and card will require access, such as secure office buildings and facilities.
With our Live Finger Detection Technology, Distinguishes fake finger made from various materials such as gelatin, rubber, silicone, paper etc. including gelatin, rubber, silicone, paper and more.
including gelatin, rubber, silicone, paper and more.
storing image logs as soon authenticate.
A Heavy Duty, Premium Quality, Outdoor use Fingerprint Terminal and Card Reader AC-2200 from Virdi Access Control. This weather & dust proof IP65 rated, heavy duty and robust, high-end quality Premium Grade, Premium Quality & Premium Brand, Outdoor use Fingerprint Terminal and Card Reader AC-2200 is designed and engineered to provide best-in-class Access Control for a wide variety of modern-day facilities including Hotels, Hospitals, Factory Units, Office Buildings, Data Centers, Server Rooms, etc..
| AC2200 Specifications | |
| General Specifications | |
| Specification | Details |
| Model | AC2200 |
| Authentication Methods | Fingerprint / Card |
| Dust & Water Resistance | IP65 |
| Operating Temperature | -20°C ~ 60°C |
| Dimensions (W × H × D) | 58 × 187.9 × 51.6 mm |
| User Capacity | |
| Item | Capacity |
| Card Users (1:1 / 1:N) | 10,000 |
| Fingerprint Users (1:1) | 10,000 |
| Fingerprint Users (1:N) | 5,000 |
| Template Capacity | |
| Template Type | Capacity |
| Fingerprint Templates (1:1) | 20,000 |
| Fingerprint Templates (1:N) | 10,000 |
| Maximum Templates per Finger | 2 |
| Maximum Fingers per User | 10 |
| Storage Capacity | |
| Item | Capacity |
| Event Logs | 100,000 |
| Images | 10,000 |
| Communication Interfaces | |
| Interface | Availability |
| TCP/IP | Yes |
| Bluetooth | Yes |
| USB | Yes |
| Wi-Fi | No (X) |
| Wiegand OUT | Yes |
| Wiegand IN | Yes |
| RS232 | No (X) |
| RS485 / OSDP | Yes |
| Display & User Interface | |
| Feature | Details |
| LCD Display | 1.77″ Color LCD |
| Backlight | Yes |
| Keypad | No (X) |
| Function Keys | 4 |
| Card Technology Support | |
| Card Type | Support |
| 125 kHz EM Card | Yes |
| HID Prox | No (X) |
| HID iCLASS | No (X) |
| 13.56 MHz Smart Card | Yes |
| Hardware Features | |
| Feature | Details |
| Embedded Camera | Yes |
| Door Phone | No (X) |
| Fingerprint Sensor Area | 14.8 × 17.9 mm |
| Sensor Resolution | 500 dpi |
| Performance Specifications | |
| Specification | Value |
| FRR (False Rejection Rate) | 0.10% |
| FAR (False Acceptance Rate) | 0.00% |
| Operating Illuminance | Not Supported (X) |
| Software | |
| Software Platform | Details |
| Operating Software / Server Solution | UNIS |
