Description

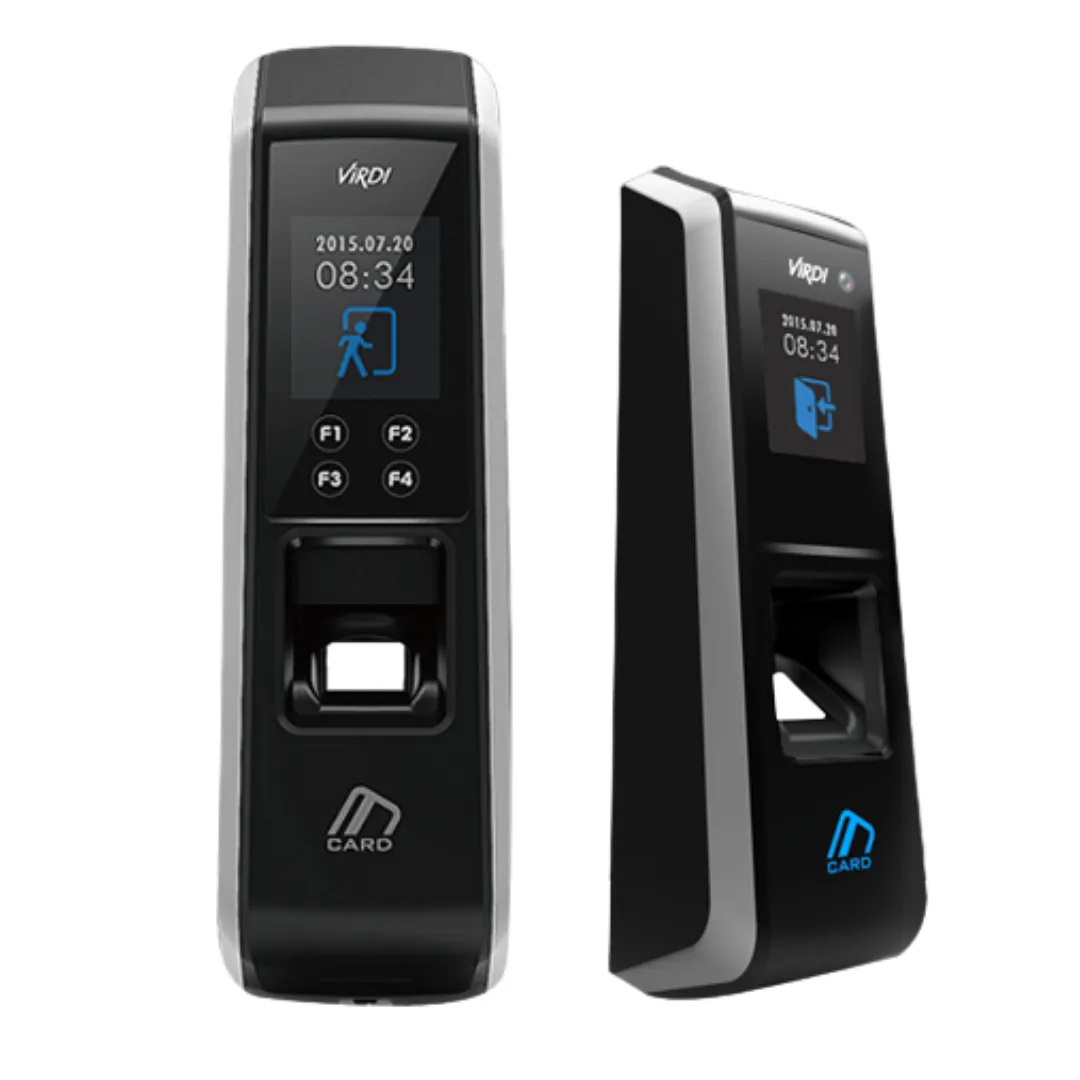

ViRDI AC-2100 PLUS Outdoor Fingerprint Recognition Terminal (IP65 Dust & Waterproof, 10,000 users, live & fake finger detection)
AC-2100 PLUS is an Outdoor fingerprint recognition terminal with IP65 Dust & Waterproof.
IP65 Dust & Waterproof
- Ingress protected enclosure,
- keeping out dust moisture ensures faultless operation even under unfavorable conditions.
- Perfect for outdoor applications.
Live Finger Detection Technology
- With our Live Finger Detection Technology,
- It can distinguish fake fingerprint made from various materials including gelatin, rubber, silicone, paper and more.
1.77inch Screen
With its 1.77” Screen it provides the user easy to use GUI.
Specifications
Manufacturer specifications, UNION Biometrics.
| Model | AC2100PLUS |
| Authentication Method | Fingerprint/Card |
| Dust/ Water Resistance | IP65 |
| Memory — Max Users — Card — (1:1) / (1:N) | 10,000 |
| Fingerprint (Base on one finger enrollment per user) — 1:1 | 10,000 |
| 1:N | 1,500 |
| Templates — Fingerprint — 1:1 | 20,000 |
| 1:N | 3,000 |
| MAX Templates per Finger | 2 |
| MAX Finger per User | 10 |
| Logs | 100,000 |
| images | X |
| Communication — with server | TCP/IP |
| other | USB |
| Wireless LAN(Wi-Fi) | X |
| Wiegand OUT | O |
| RS232 | X |
| RS485 | OSDP |
| Wiegand IN | O |
| Display — LCD | 1.77″Color LCD |
| Backlight | O |
| Card — 125khz-EM | O |
| HID Prox | O |
| HID iclass | O |
| 13.56MHz Smart Card | O |
| Embedded Camera | X |
| Keypad | X |
| Function keys | 4 |
| Door Phone | X |
| FP Sensor (Platen Area) | 14.8 X 17.9mm |
| Resolution | 500 dpi |
| Dimension(W) X (H) X (D) mm | 58 X 187.9 X 51.6 |
| FRR /FAR | 0.1% /0.0001% |
| Operating Illuminance (lux) | X |
| Operating Temperature | -20 ~ 60℃ |
| Opertating Software (Server solution) | UNIS |
